46-923 / 46-924 Economy Version

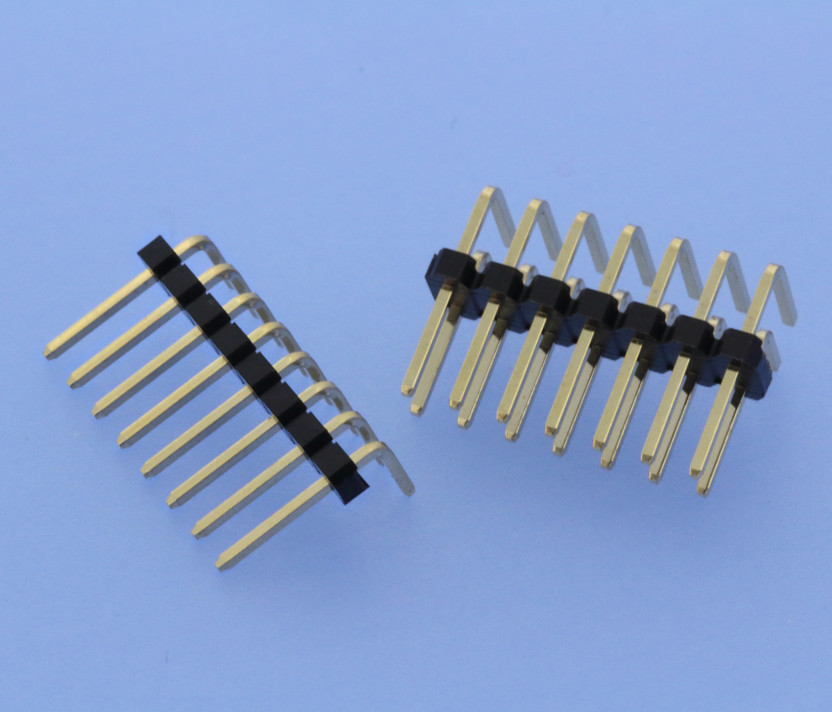

Pin Headers, 2.54mm Pitch, Right-Angled, Single/Double Row – 1.5mm Body

Go to configuration
Note

Technical Data

Insulator Thermoplastic, rated UL94 V-0
Contact Material 0.64mm square pin, copper alloy
Contact Surface Au over Ni
Contact Resistance 20 mΩ max.
Insulation Resistance 1000 MΩ min.
Test Voltage 1000 V AC/DC
Current Rating 3.0 A
Temperature Range -40 °C ... +105 °C
Processing 230 °C for 30-60 seconds
(260 °C for 10 seconds)

Downloads

Data Sheet download

Passende Buchsenleisten:
Compatible Female Headers:
153 154 46-157 46-159 46-160 / 46-162 46-624 etc.
Weitere siehe Kapitel B
Please see ch. B for more

Configure your product

PCB Layouts und Detailzeichnungen s. tech. Informationen.
Please note tech. information for PCB layouts and detailed drawings.

Select the desired configuration:

Series
Please select 1 option
46-923 Single row
46-924 Double row
Dimensions
Please select 1 option
12 B=3.50 C=3.30mm
13 B=4.80 C=3.30mm
14 B=6.10 C=3.30mm
15 B=6.90 C=3.30mm
16 B=9.90 C=3.30mm
17 B=12.00 C=3.30mm
18 B=13.80 C=3.30mm
19 B=15.00 C=3.30mm
20 B=17.10 C=3.30mm
Contacts
Please select 1 option
001-020 Single row
004-040 Double row
Plating
Please select 1 option
00 Gold plated
